Two-function HM7/2 for medium-flow mobile circuits. Mix SA/DA/motor spools, add float where needed, and choose lever, cable or EH actuation for the right control feel.
Key Specifications
Rated Flow
Up to 70 l/min
Max Pressure
250 bar inlet; ≤ 25 bar back-pressure
Sections
2 (HM7 platform supports up to 6)
Porting
G 1/2 BSP; SAE 8 optional
Spools
SA / DA / Motor / Float / Closed-centre
Relief
YG2 / YG3 / YG4 ranges (≈40–315 bar)
Options
Power-beyond, detents, cable kits, joystick, EH or pneumatic kits
2–5 working days typical (customs 5–10). 12-month warranty.
Set relief to spec and verify neutral across both sections before commissioning.

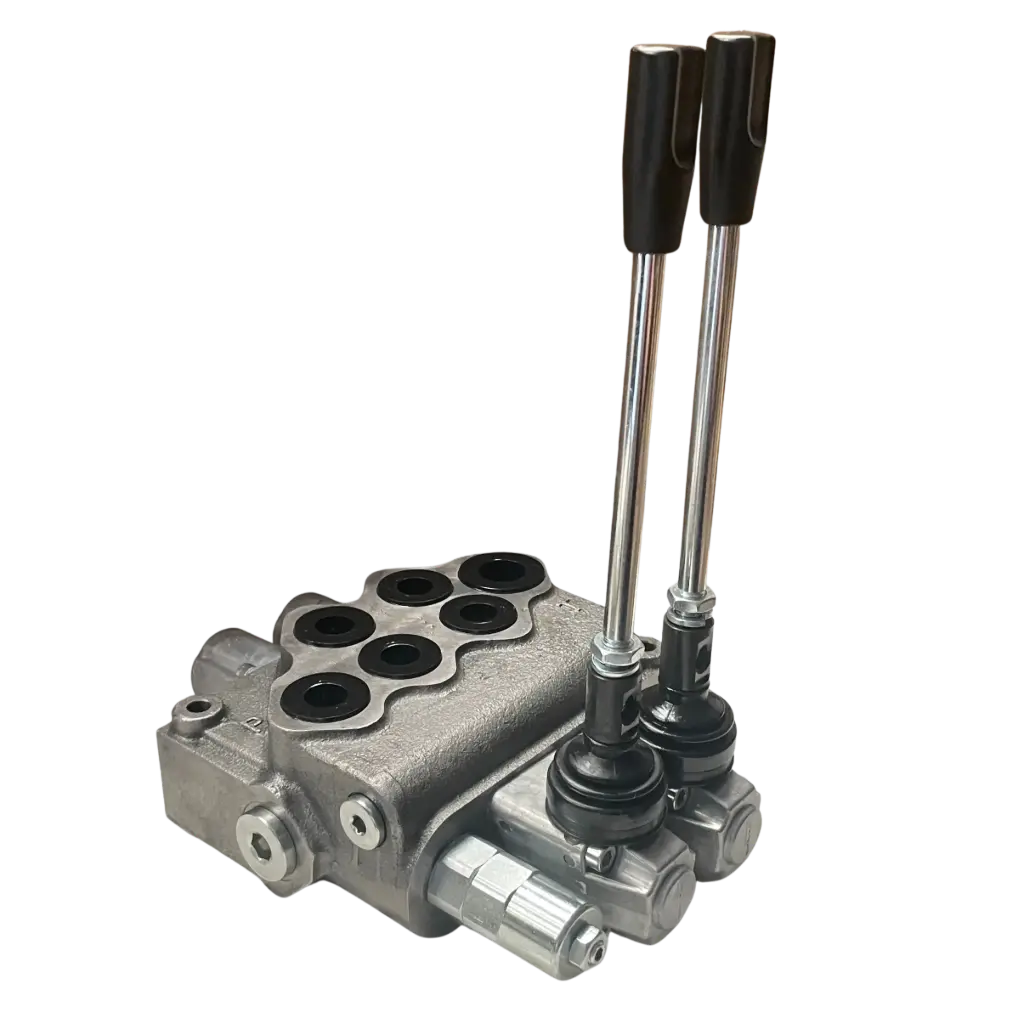

HM7/2 Monoblock Hydraulic Valve — 2 Sections
Hydraulic Equipment Ltd
70 l/min
250 bar
G 1/2 BSP
2 sections
Two-function HM7/2 for medium-flow mobile circuits. Mix SA/DA/motor spools, add float where needed, and choose lever, cable or EH actuation for the right control feel.
Key Specifications
Rated Flow
Up to 70 l/min
Max Pressure
250 bar inlet; ≤ 25 bar back-pressure
Sections
2 (HM7 platform supports up to 6)
Porting
G 1/2 BSP; SAE 8 optional
Spools
SA / DA / Motor / Float / Closed-centre
Relief
YG2 / YG3 / YG4 ranges (≈40–315 bar)
Options
Power-beyond, detents, cable kits, joystick, EH or pneumatic kits
